A 12-FL - Stud Welding Gun

Stud Welding Gun - A 12-FL

DESCRIPTION / FEATURES

Application

  • Especially suitable for thicker metal sheets from approx. 2 mm
  • Automatic compensation of length tolerance of welding elements through integrated length adjustment
  • ISO - especially suitable for welding on ARC-ISO-pins and ARC-fiberfix pins

Structure

  • Rigid casing made of impact-resistant plastic
  • Zero-play ball linear bearing for guiding the welding piston
  • Sealed welding piston guidance
  • Integrated lift and spring-loaded adjustment
  • Stud length freely adjustable

Safety

  • Lock-in spring adjustment
  • High level of security to prevent the selected settings being changed inadvertently
  • Guidance system protected against spatters

Welding

  • Reproducible piston movement with minimized rebound effect for optimum welding quality via lift damper
  • Welding in restricted space
  • Welding on painted sheets possible (clean, smooth and flat surfaces and grounding required)
  • Automatic length compensation

SPECIFICATIONS

Welding range M3 - M12 / Ø 2 - 12 mm
#4 - 1/2", Ø 14 ga - 1/2"
ARC ISO pins
dia. 3 to 6 mm /
dia. #4 to 1/4"
Stud length 10 to 400 mm /
0.39" to 15.74"
(depending on leg assembly)
Stud type ARC insulation pin, ARC fiberfix pin, ARC threaded stud, ARC pin
Lift Fixed 6 mm / 0.24"
Spring force Fixed
Welding cable 5 or 10 m / 16,40' or
32,81', 35 mm2, SK 50
IP Code IP 20
Workplace noise level Up to 90 dB (A) may occur during welding
Dimension LxWxH (without cable) 200 x 65 x 140 mm /
7.87" x 2.56" x 5.51"
Weight (without cable) 0.8 kg / 1.76 lbs
Order No. 93-20-260 (excluding leg assembly, 5 m cable length)

APPLICABLE STUD WELDERS

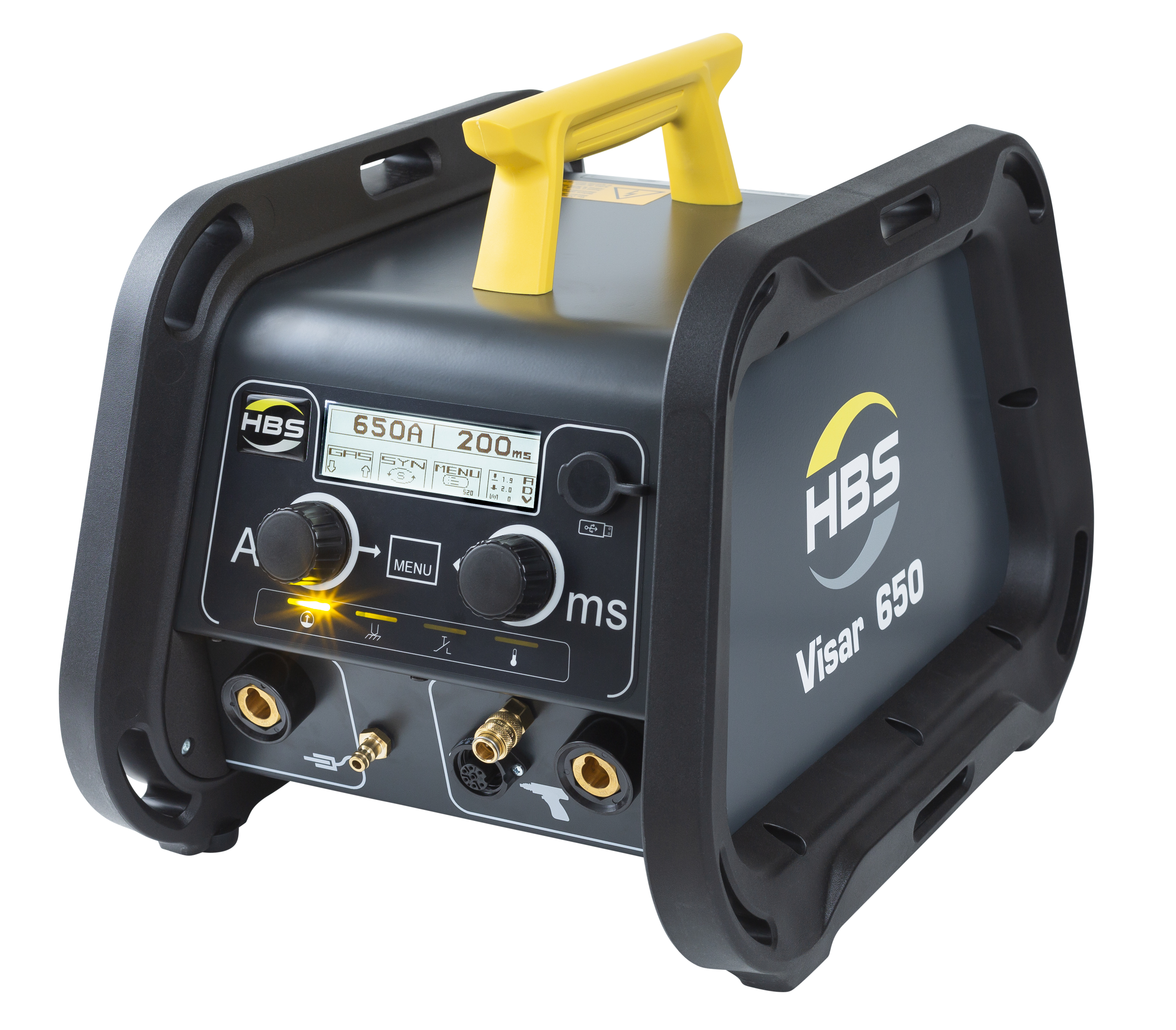

Arc Stud Welder - Single Arc-110 - Visar 650

Single Arc-110
Model 375

M3 to M10 - #4 to 7/16"

Tough! Single phase inverter (supply voltage range 100 to 240 V)
Compact, lightweight with high protection class (IP 44)

More information »

Arc Stud Welder - Single Arc-110 - Visar 650 - Shielding Gas Version

Single Arc-110
Model 375 shielding gas version

M3 to M10 - #4 to 7/16"

Tough! Single phase inverter (supply voltage range 100 to 240 V)
Compact, lightweight with high protection class (IP 44)

More information »

Arc Stud Welder - Arc-800

ARC-800

M3 to M12 - #4 to 1/2"

Robust transformer for workshops and construction sites (IP 23).
Automation (optional).

More information »

Inverter Arc Stud Welder - IT 1002

IT 1002

M3 to M16 - #4 to 5/8"

All-rounder for construction sites and workshops (IP 23)
Precise results through advanced inverter technology

More information »

Inverter Arc Stud Welder - IT 2002

IT 2002

M3 to M24 - #4 to 1"

Energy Package for larger studs, used on construction sites and workshops

More information »

Inverter Arc Stud Welder - IT 90

IT 90

M3 to M24 - #4 to 1"

Inverter (2,000 A) with options for 4 outputs, process monitoring and shielding gas.

More information »
