Bent - No Thread - Arc Weld Stud
| For a quote or to order, please specify: | ||||
|---|---|---|---|---|
| Product Code: | Diameter: | Length: | Material: | Quantity: |
| NTB | Specify D | Specify L | Specify | Specify |
Stud Welding Equipment and Supplies Request a quote
| For a quote or to order, please specify: | ||||
|---|---|---|---|---|
| Product Code: | Diameter: | Length: | Material: | Quantity: |
| NTB | Specify D | Specify L | Specify | Specify |
| STUD | ||||
|---|---|---|---|---|

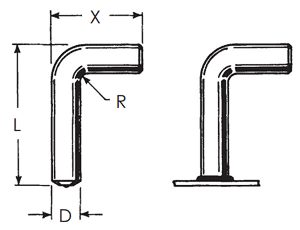

| D | MIN L | MIN X | MIN R | FERRULE CODE |
| 1/4 | 1-1/8 | 1-1/4 | .125 | F250 |
| 5/16 | 1-1/4 | 1-1/2 | .218 | F312 |
| 3/8 | 1-1/2 | 1-1/2 | .218 | F375 |
| 7/16 | 1-5/8 | 1-5/8 | .250 | F437 |
| 1/2 | 1-3/4 | 1-3/4 | .250 | F500 |
| 5/8 | 1-7/8 | 2" | .312 | F625 |
| 3/4 | 2-3/4 | 3" | .500 | F750 |
| 7/8 | 3-1/2 | 3-3/8 | .500 | F875 |
| MATERIAL | MILD STEEL | STAINLESS STEEL | |
|---|---|---|---|
| C - 0.23% max. | P - 0.04% max. | AISI grade - 302 / 304 / 305 / 316 std. | |
| Mn - 0.90% max. | S - 0.05% max. | Other grades available upon request. | |
| MECHANICAL PROPERTIES | Tensile | 60,000 psi (min.) | Values for various grades available upon request. |
| Yield | 50,000 psi (min.) | ||
| Elongation | 20% (in 2 inches) | ||
| PLATING | Plating is not standard. Cadmium, Copper, Nickel, and Zinc available upon customer request. | Does not apply to Stainless. | |
