How to install insulation using stud welding pins

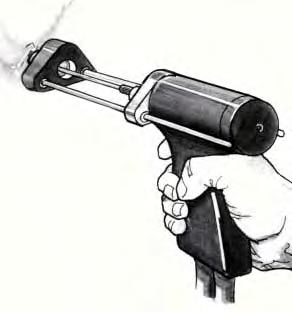

Stud weld the weld pins in to place
Step 1. Stud weld the weld pins in to place

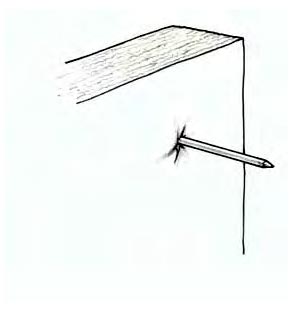

Hang the insulation on the weld pins
Step 2. Hang the insulation on the weld pins

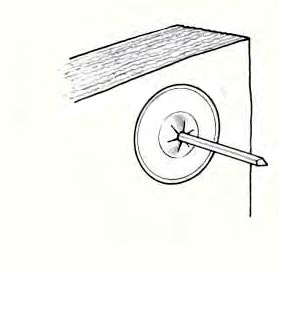

Press washers on the weld pins to secure the insulation
Step 3. Press washers on the weld pins to secure the insulation

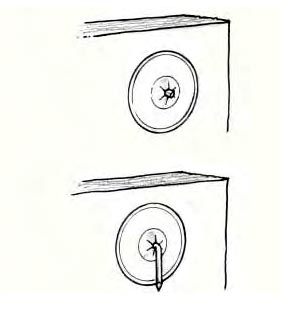

Either clip off the weld pins at washer or bend the weld pins over washer
Step 4. Either clip off the weld pins at washer or bend the weld pins over washer
