Request a QuoteRectangular Chucks - Arc Stud Welding Gun Parts

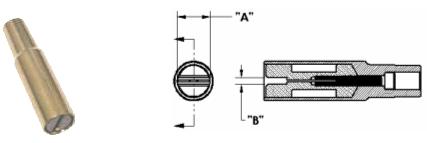

| STUD DIAMETER | "A" DIMENSION | "B" DIMENSION | PART NUMBER |
|---|---|---|---|
| 1/8 X 1/4 | 1/8 | 1/4 | CR-CA |
| 1/8 X 3/8 | 1/8 | 3/8 | CR-CB |
| 1/8 X 5/8 | 1/8 | 5/8 | CR-CC |
| 1/8 X 3/4 | 1/8 | 3/4 | CR-CG |
| 1/8 X 7/8 | 1/8 | 7/8 | CR-CH |
| 1/8 X 1" | 1/8 | 1 | CR-CE |
| 1/4 X 3/4 | 1/4 | 3/4 | CR-CF |
| 1/4 X 1-1/4 | 1/4 | 1-1/4 | CR-CJ |
