Headed Anchor Chucks - Arc Stud Welding Accessories

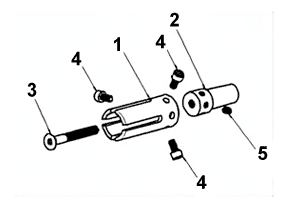

Headed Anchor Chuck

CH-037 – 3/8" HEADED ANCHOR CHUCK (3/4" DIAMETER HEAD)
ITEM NUMBER PART NUMBER DESCRIPTION
1 CH-037-2 Base
2 CH-037-1 Sleeve
3 115-0018 #10-32 x 3/8 Cap Screw
4 115-0019 #10-32 x 1/4 Set Screw
5 CH-037-3 Stop Screw
CH-050 – 1/2" HEADED ANCHOR CHUCK (1" DIAMETER HEAD)
ITEM NUMBER PART NUMBER DESCRIPTION
1 CH-050-2 Base
2 CH-050-1 Sleeve
3 115-0018 #10-32 x 3/8 Cap Screw
4 115-0019 #10-32 x 1/4 Set Screw
5 CH-050-3 Stop Screw
CH-075 – 5/8 & 3/4" HEADED ANCHOR CHUCK (1-1/4 DIAMETER HEAD)
ITEM NUMBER PART NUMBER DESCRIPTION
1 CH-075-2 Base
2 CH-075-1 Sleeve
3 115-0018 #10-32 x 3/8 Cap Screw
4 115-0019 #10-32 x 1/4 Set Screw
5 CH-075-3 Stop Screw
CH-087 – 7/8" HEADED ANCHOR CHUCK (1-3/8" DIAMETER HEAD)
ITEM NUMBER PART NUMBER DESCRIPTION
1 CH-087-2 Base
2 CH-087-1 Sleeve
3 115-0018 #10-32 x 3/8 Cap Screw
4 115-0019 #10-32 x 1/4 Set Screw
5 CH-087-3 Stop Screw
CH-100 – 1" HEADED ANCHOR CHUCK (1-5/8" DIAMETER HEAD)
ITEM NUMBER PART NUMBER DESCRIPTION
1 CH-100-2 Base
2 CH-100-1 Sleeve
3 115-0018 #10-32 x 3/8 Cap Screw
4 115-0019 #10-32 x 1/4 Set Screw
5 CH-100-3 Stop Screw
