Refractory Weld Studs: Insultwist

For a quote or to order, please specify:
Product Code: Diameter: Length: Material:
IT Specify D Specify L Specify

Insultwist Refractory Weld Stud

STUD
MIN L FERRULE CODE
2" F187
MATERIAL INCONEL STAINLESS STEEL
AISI grade 601 std. AISI grade - 304. 310 and 330 standard.
Other grades available upon request. Other grades available upon request.
MECHANICAL PROPERTIES Values for various grades available upon request. Values for various grades available upon request.

Lok Washer for Insultwist Refractory Anchor

Product Code: WCN ULWSHR
WASHER: Sold separately. Not a component part of stud.

Lok Washer

APPLICATION Designed for 1/4 turn locking on to SUNBELT INSULTWIST refractory anchors.
MATERIAL Stainless Steel 304
310
330
Inconel 601

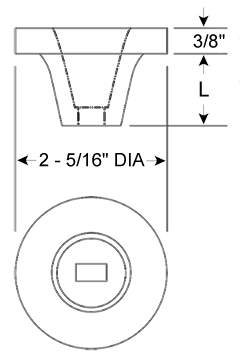

Insultwist Lok Cup

Product Code: WCN ULCUP
WASHER: Sold separately. Not a component part of stud.

Insultwist Lok Cup

APPLICATION Designed for 1/4 turn locking on to Sunbelt Stud Welding Insultwist refractory anchors.
MATERIAL Ceramic (High Temperature)
SIZE L Short - 1"
Long - 2"
