Self-Locking Washers - Square

To order or specify give:
Product Code:Diameter:Type:Material:
WCNPin on which washer is to be usedSpecifySpecify

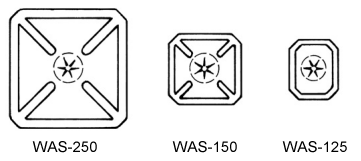

Square Self-Locking Washers

Self-Locking Washers are used in conjunction with weld pins, insul-anchors and lacing anchors to fasten insulation in place. Simply press the self-locking washer onto the pin up against the insulation until the desired position is reached and then clip off, or bend over, the remaining portion of pin for a permanent attachment.

The choice between Round or Square self-locking washers is basically a matter of aesthetics or personal preference. The domed, multi-lanced hole design provides for ease of locating washer on pin and positive self-locking. Some styles of washers are manufactured with a beveled edge to prevent the washer from cutting into the insulation facing.

Sunbelt Stud Welding Self-Locking Washers are available according to the chart below and with standard 10 GA, 12 GA, or 14 GA hole sizes off-the-shelf. Other material/plating combinations and hole sizes are available by special order.

TYPE K250K150SK125
SIZE 2-1/2 X 2-1/21-1/2 X 1-1/21-14 X 1-1/8
THICKNESS .015 nom..015 nom..015 nom.
MATERIAL Mild SteelMild SteelMild Steel
PLATING GalvanizedGalvanizedGalvanized
EDGES - FLAT OR BEVELED beveledbeveledbeveled
OTHER MATERIALS AVAILABLE Alum., S.S.Alum., S.S.Alum., S.S.
PACKED PER CARTON 100030001000, 5000
SHIPPING WEIGHT PER 1,000 28 - 1/2 lbs.10 lbs.6 lbs.
