Arc Stud Welder - S2800

Arc Stud Welder - S2800

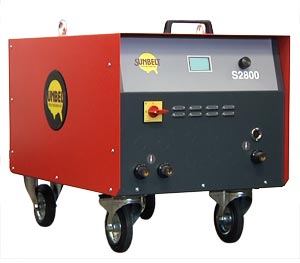

S2800 Stud Welder

DESCRIPTION

Sunbelt Arc Stud Welding System for welding up to 1" diameter studs.


Suitable Stud Welding Guns

  • GD-25
  • PRO-SPLIT (an external adaptor box) is available as an accessory for the operation of up to 4 stud welding guns with different adjustment values for welding current and welding time. It automatically detects which gun is used.

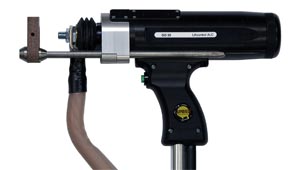

Arc Stud Welding Gun - GD 25

GD-25 Stud Welding Gun

FEATURES
  • Microprocessor controlled for arc and short cycle welding.
  • Continuous weld current and time adjustment ensures optimum results & repeatability.
  • All functions and parameters shown on big digital display.
  • Pre-installed weld programs makes welding values per task easily accessible. User specific programs can be stored.
  • Last 10 weld values stored for easy access. Optional memory can store up to 24,500 previous welds.
  • USB-Interface allows data load to a P.C.
  • Shielding gas option for special welds (aluminum, etc.).
  • Can be supplied with multi-gun (2 to 4) for different or same weld diameter.
TECHNICAL DATA
WELDING RANGE 14 Gauge – 1" (3mm to 25mm)
WELDING MATERIAL Steel, Stainless Steel
WELDING METHOD Drawn arc (ceramic ferrule), short cycle, optional: drawn arc (gas)
WELDING CURRENT 200-2600 A, continuously adjustable
WELDING TIME 10-3000 MS, continuously adjustable
POWER SOURCE Transformer/Rectifier
MAINS PLUG CEE 32 A
MAINS SUPPLY 230/400/415/460V 125A, 50/60Hz Dual Transformer
MAIN FUSE EXTERNAL 125 AT
PROTECTION IP 23
DIMENSIONS W x H x L 24" x 27" x 36"
WEIGHT 697 Pounds
ITEM NUMBER B-90-30-4060
