Sunbelt Arc Stud Welding System for welding up to 7/8" diameter studs.

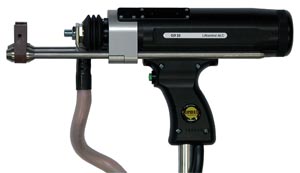

Suitable Stud Welding Guns GD-22 PRO-SPLIT (an external adaptor box) is available as an accessory for the operation of up to 4 stud welding guns with different adjustment values for welding current and welding time. It automatically detects which gun is used.
FEATURES Microprocessor controlled for arc and short cycle welding. Continuous weld current and time adjustment ensures optimum results & repeatability. All functions and parameters shown on big digital display. Pre-installed weld programs makes welding values per task easily accessible. User specific programs can be stored. Last 10 weld values stored for easy access. Optional memory can store up to 24,500 previous welds. USB-Interface allows data load to a P.C. Shielding gas option for special welds (aluminum, etc.). Can be supplied with multi-gun (2 to 4) for different or same weld diameter.
TECHNICAL DATA WELDING RANGE 14 Gauge – 7/8" (2mm to 22mm) WELDING MATERIAL Steel, Stainless Steel WELDING METHOD Drawn arc (ceramic ferrule), short cycle, optional: drawn arc (gas) WELDING CURRENT 200-2100 A, continuously adjustable WELDING TIME 10-3000 MS, continuously adjustable POWER SOURCE Transformer/Rectifier MAINS PLUG CEE 32 A MAINS SUPPLY 230/400/415/460V 63A, 50/60Hz Dual Transformer MAIN FUSE EXTERNAL 63 AT PROTECTION IP 23 DIMENSIONS W x H x L 21" x 27" x 31" WEIGHT 540 Pounds ITEM NUMBER B-90-30-4050
